Acoustic fence barrier technology

Award-winning acoustic technology

Applying acoustic science, proprietary technology and practical thinking, Echo Barrier creates durable, high-quality products that offer unrivalled all-round performance and make excellent business sense.

Outstandingly effective at absorbing noise, yet quick and easy to deploy, Echo Barrier’s modular system of portable acoustic panels strikes the optimum balance between mass, weight and dimensions.

Find out more

Outstanding performance

Extensive and rigorous testing, both in the laboratory and in the field, confirms the unrivalled all-round performance of Echo Barrier’s resilient and durable acoustic panels.

Echo Barrier’s products lead the way in noise attenuation, while remaining compact and lightweight. When it comes to the crucial task of absorbing low-frequency sound, Echo Barrier’s innovative composite can match the performance of conventional noise-absorbing materials that are more than twice as thick.

There are six factors that determine performance in the field. Echo Barrier excels in every respect.

acoustic sound absorption
Sound absorption
acoustic water absorption

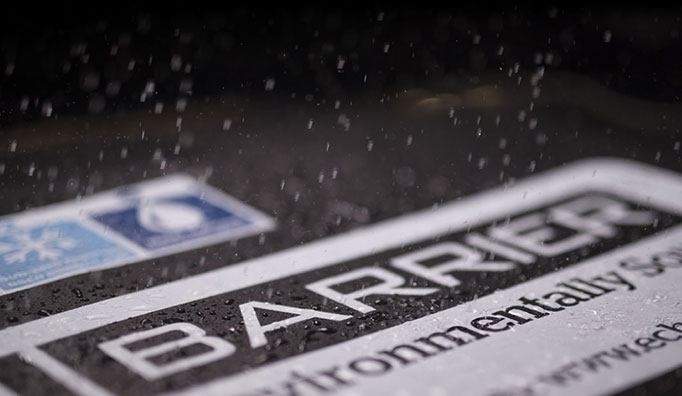

Waterproofing
acoustic sound attentuation
Noise attenuation

Independent tests prove that Echo Barrier acoustic panels do not absorb water when exposed to heavy rain or when jet-washed. They are designated as waterproof (BSEN 60529:1992 IPX6 / IPX9 standards).

Conventional acoustic blankets and barriers, as produced by other manufacturers, contain materials like fibreglass and Rockwool. These can easily become waterlogged, which makes them heavy and cumbersome to handle. Waterlogging can also halve their capacity for absorbing sound.

Echo Barrier products are fully waterproof to industry standards, IPx 6/9. They are effective in heavy rain and can be jet-washed.

Traditional acoustic blankets and noise barriers are often made of water-absorbent materials (such as fibreglass and Rockwool). When these materials get waterlogged, they weigh the barriers down and cut their noise reduction in half.

Extensive testing has proved that Echo Barrier’s acoustic panels provide unrivalled noise attenuation in the field, while laboratory tests have measured reductions of some 42dB (99.99% of sound energy). These outstanding results are achieved with high-tech panels which are 50% lighter in weight than conventional solid acoustic barriers or sound blankets. Echo Barrier’s modular system of acoustic panels strikes the optimum balance between mass, weight and dimensions. The panels can be rapidly linked and configured to create a noise barrier that is both highly effective and physically easy to manage. Generally speaking, barrier mass has a major impact on sound transmission: the heavier the material, the less it vibrates, and consequently less sound passes through it. In practice, more sound tends to pass over a barrier rather than through it, so it can be advantageous for a barrier to be taller rather than simply greater in mass.

Echo Barrier’s modular system of acoustic panels strikes the optimum balance between mass, weight and dimensions. The panels can be rapidly linked and configured to create a noise barrier that is both highly effective and physically easy to manage.
To create an acoustic wall or curtain, they can be linked both vertically and laterally, or doubled up in thickness in order to absorb still more noise.
Echo Barrier’s system can adapt to all eventualities. Central to its success is an innovative hi-tech composite. Highly sound-absorbent, but also light in weight, it forms the heart of the portable, modular system.
Suitably configured, Echo Barrier’s system of acoustic panels reduces noise substantially for diverse projects and site geometries. Its components can be positioned, combined and layered to provide the best possible response to particular conditions and challenges. To create an acoustic wall or curtain, the panels can be linked both vertically and laterally.

acoustic durability

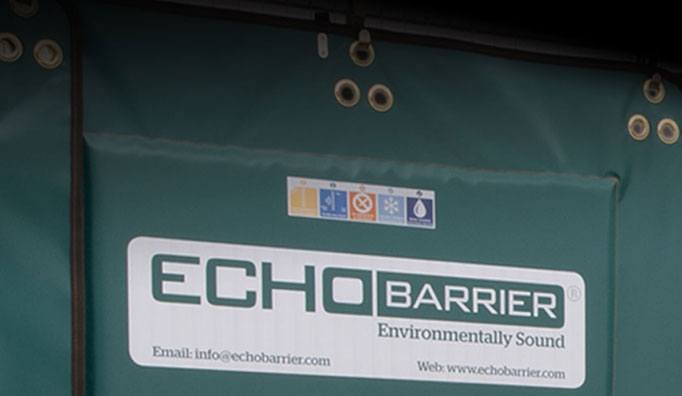

Durability
acoustic site geomerty

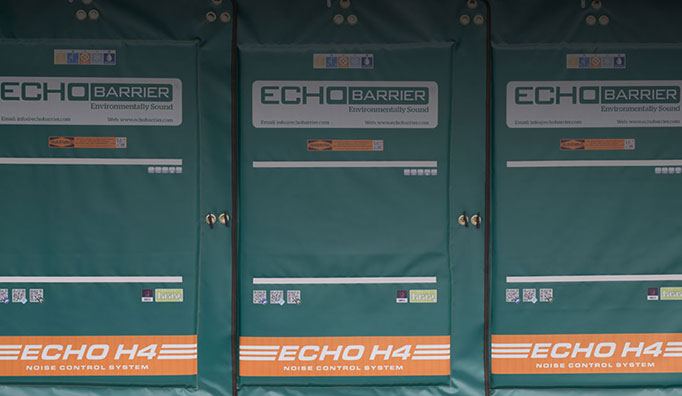

Site geometry
acoustic efficiency
Efficiency

Echo Barrier’s acoustic panels are resilient and built to last. Highly resistant to water, extreme weather and UV rays, they will perform to optimum effect year in, year out, even in the most demanding environments.
Echo Barrier’s manufacturing process, which includes hand-finishing, ensures both outstanding durability and a high standard of visual presentation. Looks really do matter: research has shown that the panels’ appearance contributes to positive perceptions of their performance. This has a bearing on any propensity to complain about noise.

Tested to international standards:
Water-resistant test standard BSEN 60529:1992 IPX6 / IPX9
Fire-resistant test standard BS 7837-1996 ASTM E84
Dust-resistant test standard BSEN 60529-1992
Cold-resistant test standard (result) BSEN 60068/2/1:2007
Tensile test standard (result) ISO 17025 (5.52kN vertical, 1.34 kN horizontal)
UV-resistant 3 years (USA + Canada), 5 years (rest of the world)

The geometry of noise mitigation concerns the relative positions of:
* i) any barrier,
* ii) the source of the noise it is intended to mitigate, and
* iii) the noise receiver (the human ear). The closer the barrier is placed to the noise source, the greater the noise attenuation: the barrier’s ‘acoustic shadow’ becomes larger – just as an object’s visual shadow becomes larger when placed closer to a light source. If a barrier is made taller, this also increases the acoustic shadow and reduces the amount of sound that passes over the barrier.

Echo Barrier offers a modular system of acoustic panels that are lightweight and easy and quick to deploy. It thus becomes simple to vary the site geometry in response to particular conditions and challenges, or to developments and changes in the course of a project.

When it comes to noise management in the field, it is especially important to attenuate frequencies between 300Hz and 1000Hz (low-to-medium frequency). Within that frequency range, Echo Barrier’s innovative acoustic panels offer, on average, an unprecedented 77% efficiency.

As a project progresses and circumstances change, Echo Barrier’s lightweight, compact panels can be readily reconfigured in response to different site geometries and new requirements for noise attenuation. They can also be linked both vertically and laterally, and doubled up in thickness, to create an acoustic curtain or wall.

Why do our acoustic barriers work so well?

The undisputed high performance of Echo Barrier’s portable acoustic panels derives first and foremost from their capacity for absorbing noise. This is complemented by their exceptional resilience and durability, and their high standards of visual presentation. (Image shows cross-section of Echo Barrier H10.)

waterproof icon
Front facing outer layer
We use super-durable, waterproof PVC, ensuring the best possible noise reduction without sacrificing appearance.
Accoustic absorbant icon
Noise-absorbent composite
Highest grade, acoustic absorbent made from recycled materials prevents noise from reflecting off the barrier (bio-degradable).
Breathable membrane
Waterproof breathable membrane
Absorbs sound, not water.
durable icon
Durable reinforced mesh
Keeps our barriers working for years in even the harshest conditions.

Designed to be easy to use

waterproof icon

More product information

High temperature icon
High temperature in direct sunlight
sound mesh info icon
Mesh faces sound source
no cutting tools icon
Do not use cutting tools
Frost resistant
BSEN 60068/2/1:2007
water resistant icon
Water resistant
BSEN 60529:1992 IPX6, IPX9

Rigorous testing

When testing the performance of an acoustic barrier, there are two key measurements:

  • Transmission loss: The decrease in noise level (measured in decibels) that results when sound passes through a solid barrier;
  • The efficiency, particularly over the key frequency range, of sound-absorbing materials in preventing sound reflection and any consequent increase in noise.

Both in the laboratory and on-site, Echo Barrier’s products achieve world-leading performance for both transmission loss and efficiency of sound absorption.

In some circumstances, Echo Barrier’s products perform better in the field than in a lab. The chart below shows the results of independent tests using a diesel-powered trenchless excavation drill.

When compared with their performance in the laboratory, Echo Barrier panels deployed on-site achieved an additional 5 dB in noise reduction at certain frequencies.

BARRIER ATTENUATION LAB v FIELD PERFORMANCE

Attenuation graph
